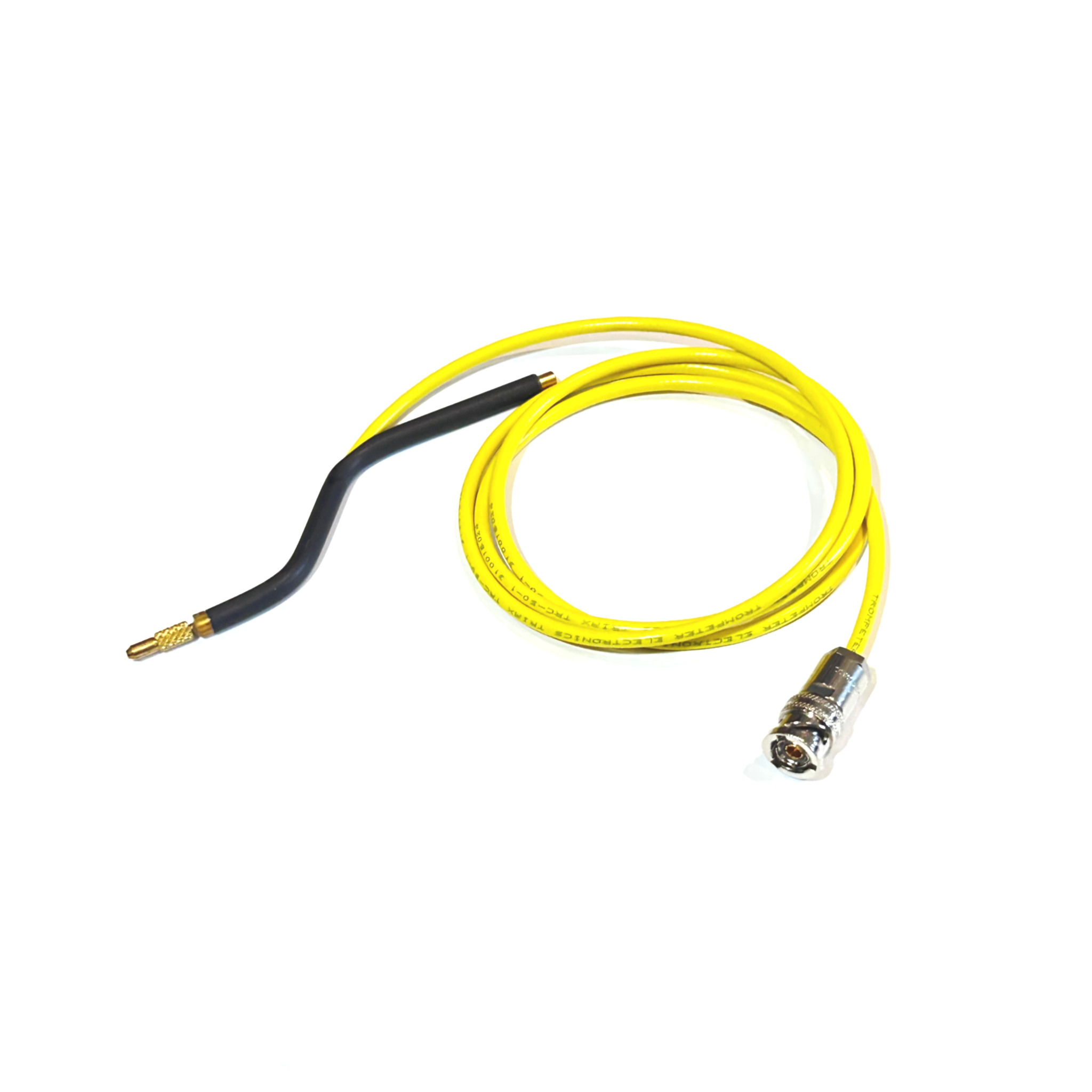

Features :
- Collet head provides 3 slot probe tip positions; 180, 45 and 30 degrees
- Collet is rotated clockwise to clamp probe tip
- Collet is rotated counter clockwise to replace probe tip
- The Back end of needle probe is inserted first at 180 degrees then rotated to desired angle so not to damage probe tip
- Collet head is isolated (Delrin material) for less capacitance and is connected to 50 inches (1.27meters) Triaxial cable for measurements
- Various lengths and shapes are available upon request (Standard is S-shaped)
Specifications :
- 50 Ohm triaxial 3-LUG TRB cable plug (BNC male connector)
- Operating temperature: -40 to 75C
- Used for low noise low signal level measurements (femto levels and less)
Compatibility :
- Multipurpose Micro-Positioner MMP550
- 0.5mmm Probe Needle
- Multipurpose Micro-Positioner MMP450
