Features :
- Lower cost version of the MMP550 – Light-weight can be placed or attached to Z plate
- Z plate is resistant to light downward force – Only Light weight can be attached to Z plate
- All adjustment knobs are on the back side for easy access (right- and left-hand users), manipulation and flexibility (side by side placement)
- Small footprint, rigid and light-weight compared to similar counterparts
- Accommodates all standard probe arms: DC, AC, HF, RF and optical
- Precise XYZ linear V-Sliding motion
Specifications :
- Travel Range (X,Y,Z): 14/13/10 mm
- Screw resolution (X,Y,Z)50 TPI (standard) or 100 TPI (optional)
- Mounting: magnetic

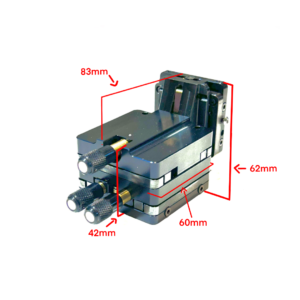

- Exterior dimensions: 84×75 x 60 mm (L,W, H)
- Weight: 595 grams
- Application: General purpose DC, AC, HF, RF and optical measurements
- Z-Axis: Top knob
- Y-Axis: Left knob
- X-Axis: Right knob
Compatibility :
- DC, AC, HF, RF and optical probe arms
- Various Face plates
- Magnetic base plate
